Alat Uji Scratch Pencil Hardness Testing

30 April 2026 • 28x dilihat

PT.Mora Anugerah Berkat (M.A.B) adalah perusahaan yang bergerak di bidang alat laboratorium dan testing material, kami sudah mensupply berbagai alat keseluruh indonesia,khusus untuk material testing kami ingin menawarkan produk dari YASUDA SEIKI yang merupakan salah satu brand Jepang yang banyak di gunakan untuk pengujian material seperti  : Pencil Scratch Hardness Testing atau Pencil Hardness Test

Alat Uji Scratch Pencil Hardness Testing

No.553-S Pencil Scratch Hardness Tester (Hand Push)
Specification
 1 Loads Spec3 Loads Spec
Scratching Angle45 ± 1°45 ± 1°
Test Load750 gf500 gf、750 gf、1,000 gf
AccessoriesMitsubishi UNI Pencil (6B to 9H) : Total 17 pcs, Pencil Sharpener,
Abrasive Paper (#1000), Wooden case, additional weight  (3 Loads Spec only)
Dimensions /
Weight (Approx.)		W120 × D85 × H130 mm, 2 kgW120 × D85 × H130 mm, 2 kg

Alat Uji Scratch Pencil Hardness Testing

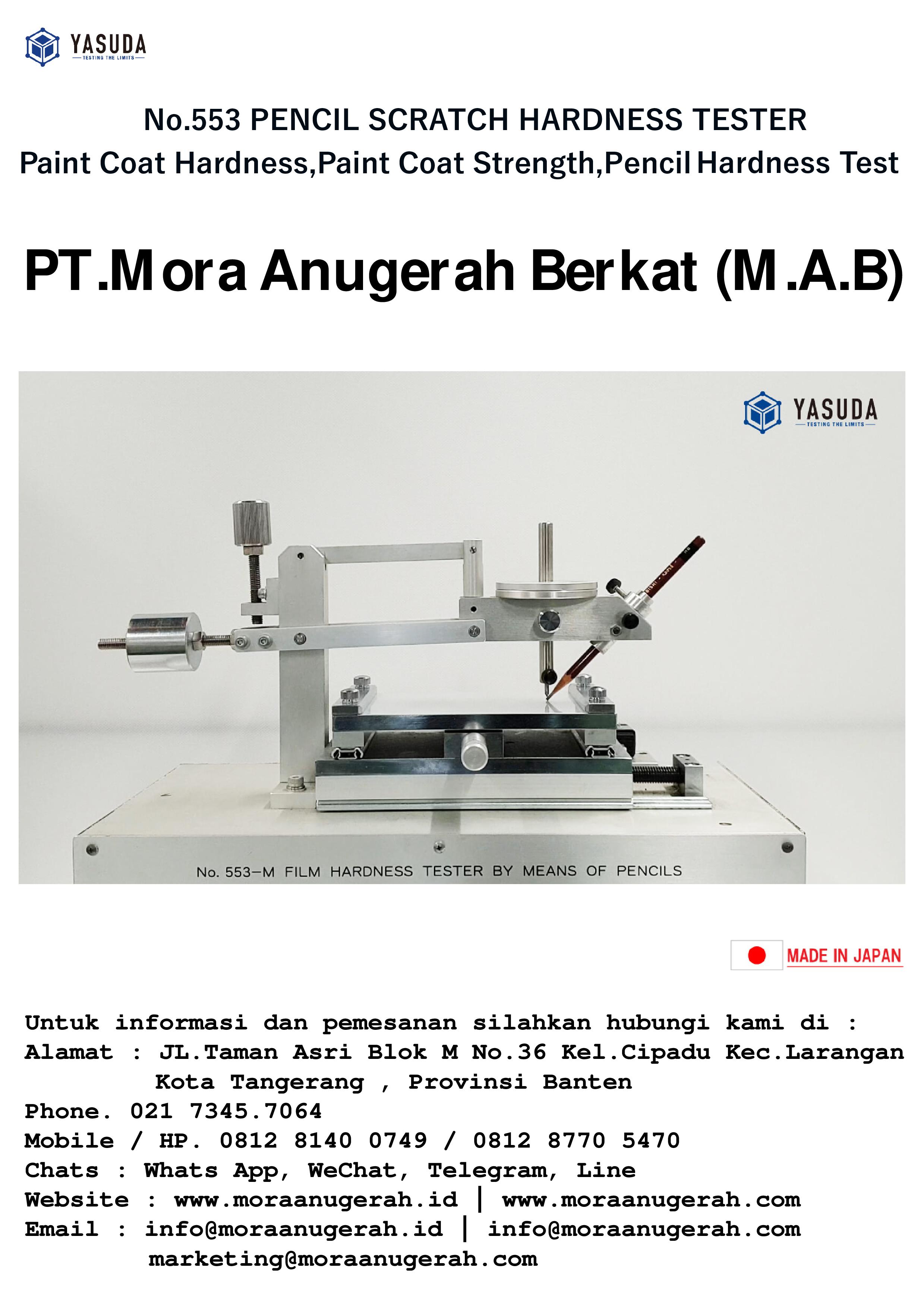

No.553-M Pencil Scratch Hardness Tester (Electric System)
Specification
ModelNo.553 Pencil Scratch Hardness
Tester (Manual)		No.553-M Pencil Scratch Hardness
Tester (Electric System)
Specimen Base100 × 180 mmM-1： 100 × 180 mm
M-2： 150 × 180 mm
StrokeLeft-Right Max. 100 mm, Front-Back Max. 50 mm
Scratching Angle45° (60° for Enameled Wire)45° (60° for Enameled Wire)
Scratching SpeedManual 1.75 mm/ 1 turnMotorized (Standard 0.5 to 1 mm/s)
Weight LoadMax. 1 kgf (Balance Weight)Max. 1 kgf (Balance Weight)
AccessoriesMitsubishi UNI Pencil (6B to 9H) : Total 10 pcs,
Abrasive Paper (#400), Spirit Level
OptionHeating Plate Spec, Conduction Device,
Needle (φ 3 mm, L23 mm, Top Angle 60°)
Power Source―AC 100 V, 1-Phase, 3 A, 50/60 Hz
Dimensions /
Weight (Approx.)		W440 × D200 × H250 mm, 8 kg
 		M-1: W440 × D200 × H440 mm, 20 kg
M-2: W440 × D260 × H440 mm, 27 kg

Alat Uji Scratch Pencil Hardness Testing

Berikut ini adalah daftar alat uji (testing equipment) untuk berbagai pengujian material testing YASUDA SEIKI sebagai berikut :

YASUDA SEIKI
Material : Plastic, Rubber, Tape Film and Polymer
PageNama Alat TestingCode No
1TABER TYPE ABRASION TESTER101
 GEER TYPE AGING OVEN102
2WILLIAM TYPE PLASTOMETER105
 AUTOMATIC WILLIAM TYPE PLASTOMETER105 AUTO
 SCHOPPER TYPE SAMPLE CUTTER115
3OLSEN TYPE STIFFNESS TESTER FOR HEAVY LOAD118
 DIGITAL OLSEN TYPE STIFFNESS TESTER FOR HEAVY LOAD118 D
 DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER119
 DE MATTIA FLEX-CRACKING AND CRACK GROWTH
TESTER WITH LOW TEMP. OVEN		119 L
4DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER WITH LOW TEMP. OVEN （WITH A PICTURE BREAK DETECTION FUNCTION）119- LVR
5MELT FLOW INDEX TESTER120-FWP
 FULLY AUTOMATIC MELT FLOW INDEX TESTER120 LABOT-MI
 AUTOMATIC MELT FLOW INDEX TESTER120 SAS-2000
6BRITTLENESS TEMPERATURE TESTER121
 R BRITTLENESS TEMPERATURE TESTER（WITH REFRIGERATING MACHINE）121
 RA BRITTLENESS TEMPERATURE TESTER (ROTARY HOLDER TYPE)121
7FULLY AUTOMATIC BRITTLENESS TEMPERATURE TESTER121 AUTO
 TEST TUBE AGING TESTER122
 SCHOPPER TYPE THICKNESS GAUGE128/129
8AUTOMATIC CAPILLARY RHEOMETER FOR LIGHT LOAD140-SAS-2002
 AUTOMATIC CAPILLARY RHEOMETER FOR HEAVY LOAD140-SAS-2005
9CREEP TESTER FOR LIGHT LOAD145-A
 CREEP TESTER FOR HEAVY LOAD145-B
 MIXED CREEP TESTER（STRESS RELAXATION TESTER）145-C
10RETENTIVITY TESTER145-D
 TR TESTER145-L
 SERVOMOTOR TYPE CREEP TESTER145-SVS
11GEHMAN STIFFNESS TESTER145-G
 FULLY AUTOMATIC HEAT DISTORTION TESTER148-HDA
 HEAT DISTORTION TESTER148-HD-PC
12HIGH TEMPERATURE HEAT DISTORTION TESTER148-HD-500
 STRESS-CRACKING TESTER149
 LAMBOURN ABRASION TESTER150
13DIN ABRASION TESTER151
 DIN ABRASION TESTER WITH OVEN151-OV
14GEL TIME TESTER153
 GEL TIME TESTER（CONTINUOUS RECORD TYPE）153
15MARON MECHANICAL STABILITY TESTER156
 AUTOMATIC MARON MECHANICAL STABILITY TESTER156-AUTO
 FLOOR MATERIAL FATIGUE AND ABRASION TESTER BY CASTER159
16SLIP TESTER162
 SLIP TESTER(HORIZONTAL METHOD)162-FS
 5 HANGINGS SLIP TESTER162-S5
17O-Y PULL SLIP TESTER162-OY
 CLASH-BERG TORSION FLEXIBILITY TESTER170
 AUTOMATIC CLASH-BERG TORSION FLEXIBILITY TESTER170-AUTO
 COMPRESSION SET TESTER171
18FILM IMPACT TESTER181
 FILM IMPACT TESTER WITH LOW TEMP. OVEN181-L
 FALLING BALL IMPACT TESTER183
19BALL TACK TESTER183-BT
 FALLING DART IMPACT TESTER183-S
 MCBURNEY INDENTATION TESTER184-A
 RESIDUAL INDENTATION TESTER184-B
20OZONE AGING TESTER187
 PLASTIC SAMPLE CUTTING MACHINE189-PAL
 AUTOMATIC SAMPLE FORMING MACHINE189-PFA
21NOTCHING MACHINE189-PN
 AUTOMATIC NOTCHING MACHINE189-PNA/PNCA
 TEST MIXING ROLL191-TM/WM
22ELECTRIC HEATING SYSTEM TEST PRESS196
 LUPKE TYPE REBOUND RESILIENCE TESTER200
23YSS HEAT SEALER212
 JIS HEAT SEALER213
 OXYGEN INDEX FLAMMABILITY TESTER214
24ELECTRIC HEATING SYSTEM MINI TEST PRESS219
 DART IMPACT TESTER220
 PLASTIC FLAMMABILITY TESTER252-UL-94
25UNIVERSAL IMPACT TESTER258
 DIGITAL IMPACT TESTER258-D
 IMPACT TESTER WITH LOW TEMP. OVEN258-L
26FULLY AUTOMATIC IMPACT TESTER258-ZA
 FOAM RUBBER REPEATED COMPRESSION TESTER260
27ROSS FLEXING TESTER270
 ROSS FLEXING TESTER WITH LOW TEMP. OVEN270-LFR
28HEAT SEAL TESTER276
 PLASTIC SLIDING ABRASION TESTER283
 WILLIAM TYPE ABRASION TESTER275
59DU PONT TYPE FALLING IMPACT TESTER517
 DU PONT TYPE FALLING IMPACT TESTER WITH LOW TEMP. OVEN517-L
66ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER553-M
 PENCIL SCRATCH HARDNESS TESTER553
67FULLY AUTOMATIC PENCIL SCRATCH HARDNESS TESTER553-AUTO
 PENCIL SCRATCH HARDNESS TESTER (LOADCELL TYPE)553-F

==============================================================

YASUDA SEIKI
Material : Electric Wire Cord Testing Machine
PageNama Alat TestingCode No
1GEER TYPE AGING OVEN102
6BRITTLENESS TEMPERATURE TESTER121
 BRITTLENESS TEMPERATURE TESTER（WITH REFRIGERATING MACHINE）121-R
 BRITTLENESS TEMPERATURE TESTER（ROTARY HOLDER TYPE）121-RA
7AUTO FULLY AUTOMATIC BRITTLENESS TEMPERATURE TESTER121 AUTO
29CABTYRE CABLE IMPACT TESTER124
 CABTYRE CABLE FLEXING TESTER125
 CABTYRE CABLE ABRASION TESTER127
30SPRING ELONGATION TESTER161
 ENAMELED WIRE STIFFNESS TESTER163
 ENAMELED WIRE SOFTENING POINT TESTER173
31VOLT-ENDURANCE AND DESTRUCTION TESTER175
 PARALLEL PLATE PLASTOMETER185
 AUTOMATIC PARALLEL PLATE PLASTOMETER185-AUTO
32VOLT-ENDURANCE AND DESTRUCTION TESTER
(TWISTPAIR METHOD)		204
 LOW-VOLTAGE CABLE ABRASION TESTER FOR AUTOMOBILE208
33MAGNET WIRE ABRASION TESTER(RECIPROCATING TYPE210
 SCRAPE TESTER（ONE DIRECTION TYPE）215
34ELECTRIC WIRE FLAMMABILITY TESTER252-UL-1581
 ELECTRIC RECIPROCATING ABRASION TESTER (PLUG PIN253
 PLUG FLEXING TESTER254
35COMPOUND GRINDER255
 OUTLET PLUG DURABILITY TESTER256
 CABLE BENDING TESTER262
66ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER553-M
 PENCIL SCRATCH HARDNESS TESTER553
67FULLY AUTOMATIC PENCIL SCRATCH HARDNESS TESTER553-AUTO
 PENCIL SCRATCH HARDNESS TESTER (LOADCELL TYPE)553-F

==============================================================

YASUDA SEIKI
Material : Pulp and Paper Testing Machine
PageNama Alat TestingCode No
1TABER TYPE ABRASION TESTER101
7SCHOPPER TYPE THICKNESS GAUGE128/129
16SLIP TESTER162
16SLIP TESTER(HORIZONTAL METHOD)162-FS
165 HANGINGS SLIP TESTER162-S5
18FILM IMPACT TESTER181
18FILM IMPACT TESTER WITH LOW TEMP. OVEN181-L
39HANDLE-O-METER226
39MULLEN HIGH-PRESSURE TYPE BURSTING STRENGTH TESTER304-YPH
39MULLEN LOW-PRESSURE TYPE BURSTING STRENGTH TESTER305-YPL
40FPC FLEXING TESTER306
 FPC FLEXING TESTER WITH LOW TEMP. OVEN306-L
41MIT TYPE FOLDING ENDURANCE TESTER307
 MIT TYPE FOLDING ENDURANCE TESTER LOW TEMP. OVEN307-L
 SCHOPPER TYPE FOLDING ENDURANCE TESTER308
42FENCHEL EXPANSION AND CONTRACTION TESTER309
 KLEMM CAPILLARY RISE TESTER310
 GURLEY TYPE STIFFNESS TESTER311
43TABER TYPE STIFFNESS TESTER312
43DIGITAL TABER TYPE STIFFNESS TESTER312-D
43ELMENDORF TYPE TEARING RESISTANCE TESTER315
43DIGITAL ELMENDORF TYPE TEARING RESISTANCE TESTER315-D
44RING CRUSH TESTER316
44WATER VAPOUR PERMEABILITY CUP318
44AUTOMATIC BEKK SMOOTHNESS TESTER321
45GURLEY TYPE DENSOMETER323
 AUTOMATIC GURLEY TYPE DENSOMETER323-AUTO
 CANADIAN STANDARD FREENESS TESTER324
46SCHOPPER-RIEGLER TYPE FREENESS TESTER325
 PULP SCREENING TESTER330
 AUTOMATIC K.B.B. SIZEING TESTER338
47CLARK TYPE STIFFNESS TESTER342
 TAPE ADHESION ROLLER349
 GURLEY TYPE WATER ABSORPTIVENESS TESTER (COBB METHOD)352
48STANDARD SAMPLE CUTTER353
 DOUBLE BLADE SAMPLE CUTTER FOR RING CRUSH TESTER355
 CURL-SIZE TESTER360
49WATER VAPOUR PERMEABILITY CHAMBER367
 INTERNAL BOND TESTER368
 CONTAINER COMPRESSION TESTER371-S
52COLOUR FASTNESS RUBBING TESTER428

==============================================================

YASUDA SEIKI
Material : Paint , Pigment , Ink , Color Testing Machine
PageNama Alat TestingCode No
1TABER TYPE ABRASION TESTER101
18FALLING BALL IMPACT TESTER183
44WATER VAPOUR PERMEABILITY CUP318
49WATER VAPOUR PERMEABILITY CHAMBER367
51CROCK METER416
52COLOUR FASTNESS RUBBING TESTER428
56FLOW CUP505
 SPREAD METER506
 AUTOMATIC SPREAD METER506-PCM
57WET FILM THICKNESS GAUGE507
 BAKER TYPE FILM APPLICATOR510
 PAINT FILM BENDING TESTER514
58ERICHSEN CUPPING TESTER516
 ELECTRIC SYSTEM ERICHSEN CUPPING TESTER516-M
59DU PONT TYPE FALLING IMPACT TESTER517
 DU PONT TYPE FALLING IMPACT TESTER WITH LOW TEMP. OVEN517-L
 MERCURY LAMP FADE METER518
60DRAWING TESTER ON PAINT FILM519
 ZAHN VISCOSITY CUP522
 PRINT INK DRYING TESTER524
61GRIND METER527/547
 SUTHERLAND TYPE RUB TESTER528
 DENSITY CUP536
62GARDNER TYPE FALLING SAND ABRASION TESTER541
 AUTOMATIC FILM APPLICATOR542-AB
 AUTOMATIC FILM APPLICATOR (HEATING PLATE TYPE)542-AB-H
63AUTOMATIC FILM APPLICATOR (CERAMIC PLATE TYPE)542-CR
 AUTOMATIC HOOVER MULLER546
64SAG TESTER548-CKG
 FILM APPLICATOR (DOCTOR BLADE)548-YKG
 NO PICK UP TIME TESTER FOR TRAFFIC PAINT549
65CROSS CUT EXFOLIATION TESTER551
 AUTOMATIC CROSS CUT EXFOLIASION TESTER551-AUTO
 GARDNER TYPE WASHABILITY TESTER552
66PENCIL SCRATCH HARDNESS TESTER553
 ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER553-M
 HAND PUSH PENCIL SCRATCH HARDNESS TESTER553-S
67PENCIL SCRATCH HARDNESS TESTER (LOADCELL TESTER)553-F
 FULLY AUTOMATIC PENCIL SCRATCH HARDNESS TESTER553-AUTO
 VOLUME DENSITY METER558
68RCI TYPE DRYING TIME RECORDER567
 BARCOATER579

PT.Mora Anugerah Berkat adalah perusahaan yang sudah berpengalaman dalam menyediakan / mensupply peralatan alat pengujian khususnya untuk industri seperti Paint Testing,Ink Testing,Film Testing dan Coating Testing, salah satu pengujian diantaranya adalah diantaranya adalah No.553-M Pencil Scratch Hardness Tester (Electric System) dan No.553-S Pencil Scratch Hardness Tester Hand Push atau Pencil Hardness Test, kami juga menyediakan peralatan yang terbaik,sudah teruji dan sesuai dengan standard  ASTM/JIS dll,kami juga menyediakan berbagai brand/merk internasional dari USA,Eropa dan China seperti Yasuda Seiki, BYK Instruments, Elecometer, Yasuda Seiki, Toyoseiki dan masih banyak lagi, untuk informasi dan pemesanan silahkan kunjungi website kami atau hubungi kami.
