Characteristics :
Simultaneous display : Time, Battery indication, Injection state, Mode, Speed, Injection volume and time, Syringe size, Alarm sound, Block, Accuracy, Body weight, Drug dose and liquid amount

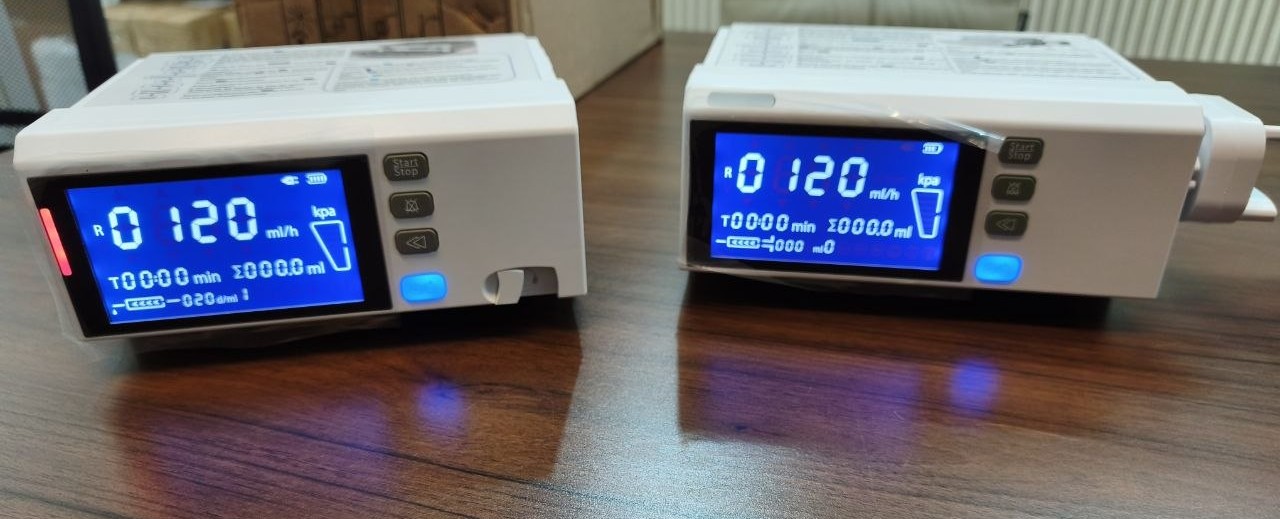

LTSI11 Syringe Pump
Details Syringe Pump
- 4.3'' color segment LCD screen, backlight display, can be used in various lighting conditions
- Simultaneous display: Time, Battery indication, Injection state, Mode, Speed, Injection volume and time, Syringe size, Alarm sound, Block, Accuracy, Body weight, Drug dose and liquid amount
- Speed, time, volume and drug amount can be adjusted via remote control, easier operation, save time of doctor and nurse
- Advanced technology, based on Linux system, more safe and steady
- Multi injection modes: Volume/Time/Body weight mode
- Visible and audible alarms cover all abnormal conditions
- Click Here : LTSI11 Syringe Pump Brochure
- Click Here : PT.Mora Anugerah Berkat sudah terdaftar di E-Katalog LKPP
| Technical Specification | |
| Injection Rate Range | |
| 50ml syringe : | 0.1～999.9ml/h (step : 0.1ml/h) 1000～1800ml/h (step : 1ml/h) |
| 30ml syringe : | 0.1～900ml/h (step :0.1ml/h) |
| 20ml syringe : | 0.1～600ml/h (step :0.1ml/h) |
| 10ml syringe : | 0.1～300ml/h (step :0.1ml/h) |
| 5ml syringe : | 0.1～150ml/h (step :0.1ml/h) |
| Purge Rate | |
| 50ml syringe: | 1800ml/h (Bolus rate: 1200ml/h) |
| 30ml syringe: | 900ml/h (Bolus rate: 600ml/h) |
| 20ml syringe: | 600ml/h (Bolus rate: 400ml/h) |
| 10ml syringe: | 300ml/h (Bolus rate: 200ml/h) |
| 5 ml syringe: | 150ml/h (Bolus rate: 100ml/h) |
| Mechanical Precision | Within±2% |
| Preset Volume Range | 0.1～1999.9ml |
| Occlusion Alarm Threshold | 800mm Hg ± 200mmHg (106.7kPa± 26.7kPa) |
| 500mm Hg ± 100mmHg (66.7kPa± 13.3kPa) | |
| 300mm Hg ± 100mmHg (40.7kPa± 13.3kPa) | |
| KVO Rate | 0.1～5ml/h (step: 0.1 ml/h) |
| Fuse | F1AL/250V |
| 2 pcs (installed inside pump) | |
| Power Supply | 100～220V, 50Hz Built in Rechargeable Li-ion battery |
| 11.1V, Capacity ≥2000mAh; by charging 10 hours | |
| it can work at 5ml/h (GB 9706.27-2005 medium rate) for 4 hours | |
LTSI11 Syringe Pump
Environment Requirement:
Operation :
a) Ambient temperature: +5℃~+40℃
b) Relative humidity: 20%~ 90%
c) Atmosphere Pressure: 86.0~106.0 (kPa)
Transportation & Storage :
a) Ambient temperature: -30℃~+55℃
b) Relative humidity: ≤95%
c) Atmosphere Pressure: 50.1~106.0 (kPa)
Alarm : Near, Injection finished, Preset dose injection finished, Occlusion, Syringe off, Syringe dislocated, Low battery, AC power off
Safe Class : Class I Type BF
Size : 282mm (L) × 210mm (W) × 148mm (H)
Weight : 2.2Kg
