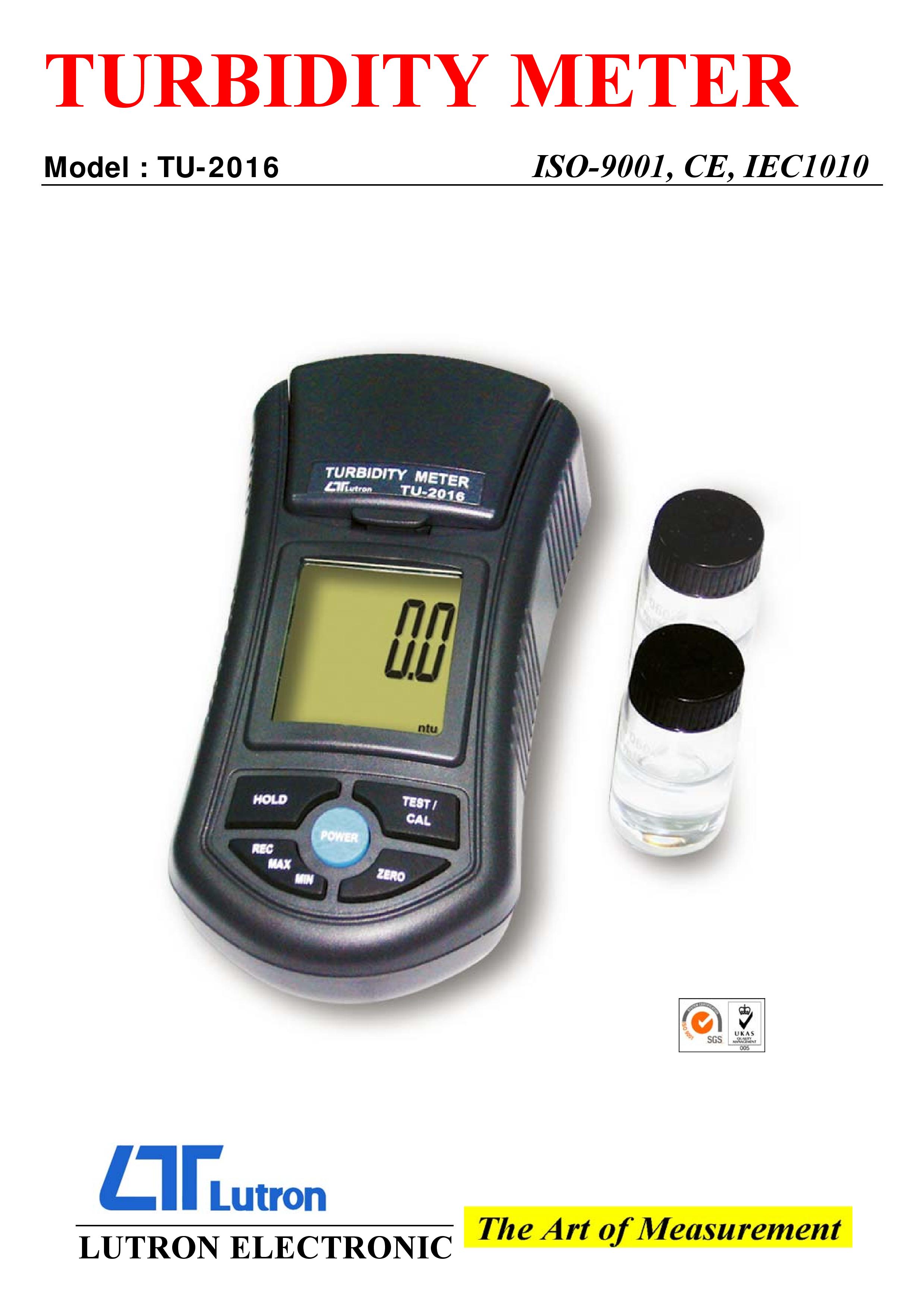

Lutron Turbidity Meter TU-2016
7 Februari 2026
•
15x dilihat
A Portable Turbidimeter is a handheld diagnostic tool used to measure the "cloudiness" or turbidity of a liquid. In the field, it is the primary way environmental scientists and water technicians determine if water is clean, contaminated, or effectively filtered.
A portable turbidimeter is a handheld, battery-operated instrument used to measure the turbidity of a liquid—essentially, how cloudy or hazy it is. Turbidity is caused by suspended particles like silt, clay, microorganisms, and organic matter that scatter and absorb light.
Lutron Turbidity Meter TU-2016
The standard unit of measurement is the Nephelometric Turbidity Unit (NTU).
Most modern portable turbidimeters use a technique called Nephelometry.
The Process : The device shines a light beam (usually a tungsten lamp or an infrared LED) into a small glass vial containing the water sample.
The Measurement : Suspended particles (silt, algae, microbes) scatter the light. A sensor positioned at a 90° angle to the light source measures the intensity of this scattered light.
The Result : The more light that hits the 90° sensor, the higher the turbidity, measured in NTU (Nephelometric Turbidity Units) or FNU (Formazin Nephelometric Units).
Most modern portable turbidimeters use the nephelometric method defined by the US EPA. They have a light source (usually an LED) and a photodetector set at a 90-degree angle to the light path.
The instrument shines a beam of light into the water sample.
Suspended particles scatter the light.
The detector at 90° measures the intensity of this scattered light.
The more light scattered, the higher the turbidity reading.
Many advanced models also use ratiometric or multiple-detector technology (detectors at 90°, 180°, and other angles) to compensate for color absorption and varying particle sizes, improving accuracy across a wide range.
Portable Turbidity Feature
-
Portability & Durability: Rugged, waterproof (IP67 rating common), lightweight design for field use.
-
Measurement Range: Typically from 0 to 1000+ NTU (some go up to 4000 NTU). High-precision models focus on the low range (0-10 NTU) for drinking water compliance.
-
Accuracy & Resolution: Critical for low-level measurements. Look for instruments meeting regulatory standards (EPA Method 180.1, ISO 7027).
-
Calibration: Easy, menu-driven calibration using AMCO/AEPA-style primary standards (e.g., formazin polymer gels or stable suspensions).
-
Data Logging & Connectivity: Most store hundreds of readings with time/date stamps and offer USB or Bluetooth connectivity to transfer data to a computer or smartphone.
-
Display & Interface: Backlit LCD screens with intuitive menus.
-
Power Source: Rechargeable Li-ion batteries or standard AA batteries.
Lutron Turbidity Meter TU-2016
Feature
|
Portable Turbidimeter
|
Benchtop (Lab) Turbidimeter
|
Location
|
Field use, on-site testing
|
Laboratory only
|
Speed
|
Immediate results on-site
|
Requires sample transport, risk of change
|
Sample Stability
|
Measures before particles settle
|
Sample can change during transport
|
Data Management
|
Good for field logging
|
Often more advanced software
|
Precision
|
Good to excellent
|
Typically highest precision for R&D
|
Cost
|
Generally lower
|
Higher
|
Lutron Turbidity Meter TU-2016
Lutron Turbidity Meter TU-2016
|
Feature
|
Designed to meet ISO 7027
|
High resolution : 0.01 NTU/1 NTU
|
NTU ( Nephelometric TURBIDITY Unit ) measuring unit
|
Wide and auto measurement range : 0 to 1,000 NTU.
|
The unique optics structure, enables the instrument to read low value of TURBIDITY to the high level up to 1,000 NTU.
|
Microprocessor circuit assures maximum possible accuracy,
provides special functions and features.
|
Four operation buttons and two calibration points,
easy operation.
|
Battery operated for field and on-site
testing convenience.
|
Jumbo LCD, easy readout.
|
Auto shut off is available to save battery life.
|
Data hold function for freezing the desired value on display.
|
Records Maximum and Minimum readings with Recall.
|
Application : Test municipal water, food and beverage water, or other aqueous solution where fluid clarity is important.
|
Heavy duty & compact housing with hard carrying case, designed for
easy carry out & operation.
|
Lutron Turbidity Meter TU-2016
SPECIFICATIONS LUTRON TURBIDITY METER
|
Circuit
|
Custom one-chip of microprocessor LSI circuit.
|
Display
|
LCD size : 41 mm x 34 mm
|
Range
|
0.00 to 50.00 NTU, 50 to 1,000 NTU
* NTU : Nephelometric Turbidity Unit
* Auto range
|
Resolution
|
0.00 to 49.99 NTU
|
0.01 NTU
|
50 to 1000 NTU
|
1 NTU
|
Accuracy ( 23 ± 5℃ )
|
0.00 to 49.99 NTU : ± 5% reading or ± 0.5 NTU, whichever is greater.
|
50 to 1000 NTU : ± 5% reading or ± 5 NTU, whichever is greater.
|
Light Source
|
LED, 850 nm.
|
Detector
|
Photo diode
|
Standard
|
Meet ISO 7027.
|
Response Time
|
Less than 10 seconds.
|
Sample Volume Needed
|
10 mL.
|
Data Hold
|
Freeze the display reading.
|
Memory Recall
|
Maximum & Minimum value.
|
Display Sampling Time
|
Approx. 1 second.
|
Power Off
|
Auto shut off saves battery life or manual off by push button.
|
Calibration Points
|
0 NTU, 100 NTU.
|
Operating Temperature
|
0 to 50 ℃.
|
Operating Humidity
|
Less than 85% R.H.
|
Power Supply
|
DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
|
Power
Current
|
Stand by
|
Approx. DC 3.5 mA.
|
Testing
|
Approx. DC 36 mA.
|
Weight
|
320 g/0.70 LB. @ Battery is included.
|
Dimension
|
155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch)
|
Accessories
Included
|
Testing bottle with 0 NTU standard solution
|
1 PC
|
Testing bottle with 100 NTU standard solution
|
1 PC
|
Empty testing bottle
|
2 PC
|
Clean cloth
|
1 PC
|
Clean solution ( Distill water )
|
1 bottle
|
Hard carrying case, CA-08
|
1 PC
|
Optional
Accessories
|
* Testing bottle with 100 NTU standard solution, TU-100NTU
|
* Testing bottle with 0 NTU standard solution, TU-0NTU
|
* Empty testing bottle, 0601
|
Lutron Turbidity Meter TU-2016
