No.181 Film Impact Tester

21 November 2018 • 21x dilihat

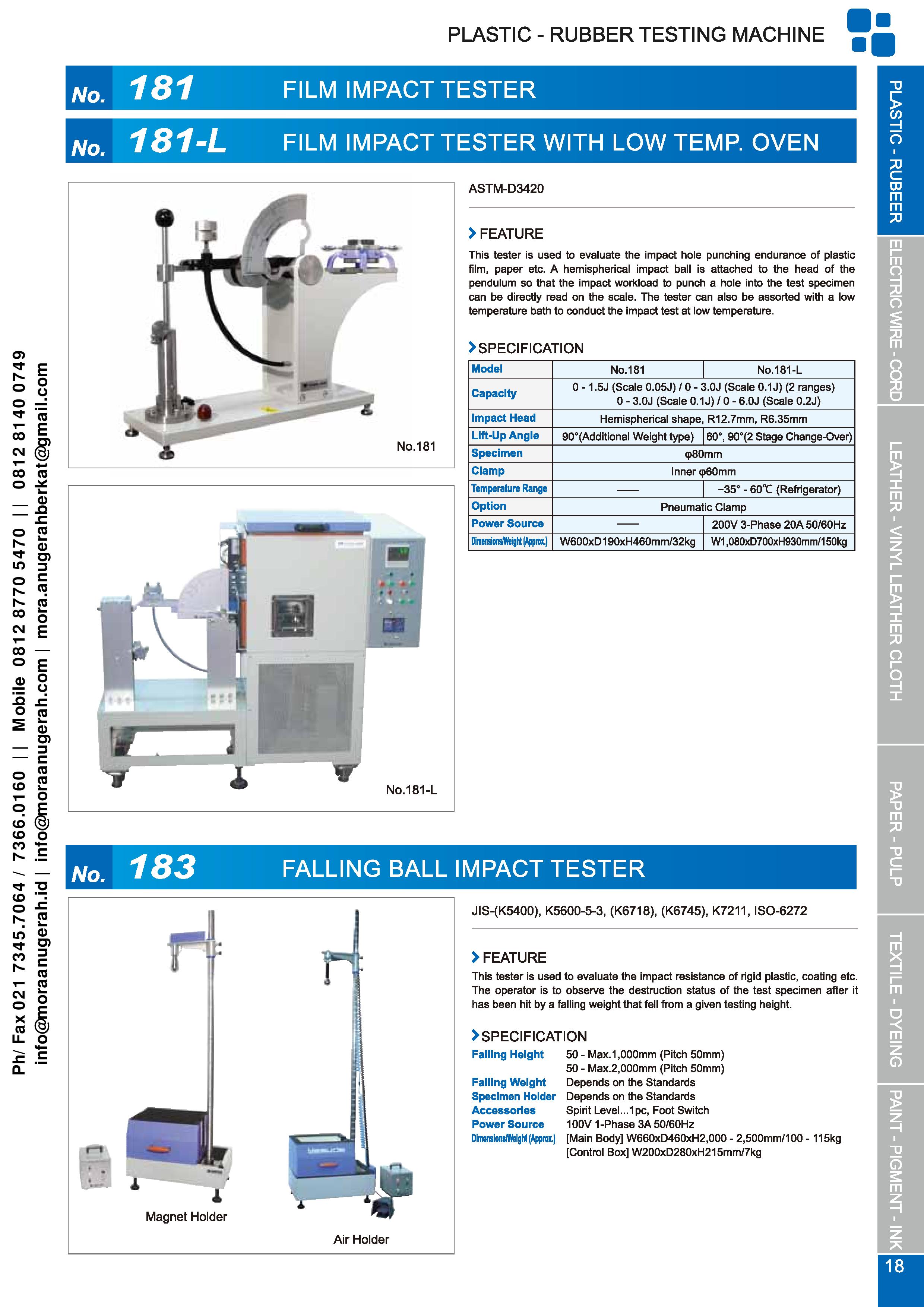

No.181 Film Impact Tester
Standard Method : ASTM-D3420
This tester is used to evaluate the impact hole punching endurance of plastic film, paper etc.
A hemispherical impact ball is attached to the head of the pendulum so that the impact workload to punch a hole into the test specimen can be directly read on the scale.
The tester can also be assorted with a low temperature chamber to conduct the impact test at low temperature.
Click Here : Yasuda Seiki - No.181 - Film Impact Tester Brochure
Click Here : PT. Mora Anugerah Berkat sudah terdaftar di E-Katalog LKPP



No.181 Film Impact Tester



FILM IMPACT TESTER
ModelNo.181 Film Impact TesterNo.181-L Film Impact Tester
(with Refrigerating Machine)
Capacity0 to 1.5 J (Scale 0.05 J),0 to 3.0 J (Scale 0.1 J) (2 ranges)
0 to 3.0 J (Scale 0.1 J), 0 to 6.0 J (Scale 0.2 J)
Impact HeadHemispherical shape, R12.7 mm, R6.35 mm
Lift-Up Angle90° (Additional Weight type)60°, 90° (2 Stage Type)
Specimenφ80 mmφ80 mm
ClampInner φ60 mmInner φ60 mm
Temperature
Range		―-35 °C to 60 °C (Refrigerator)
OptionDigital Display Ver.Digital Display Ver.
Power Source―AC 200 V, 3-Phase, 20 A, 50/60 Hz
Dimensions /
Weight (Approx.)		W 600 × D 190 × H 460 mm, 32 kgW1,080 × D700 × H930 mm, 150 kg



Yasuda Seiki menyediakan berbagai alat pengujian khusus untuk bidang (plastik,rubber,tape film dan polymer test), (electric wire cord test), (pulp and paper test) (paint, pigment, ink ,color test) dan (yarn, dyeing, textile and garment test) adalah sebbagai berikut :


YASUDA SEIKI
Material : Plastic, Rubber, Tape Film and Polymer
PageNama Alat TestingCode No
1TABER TYPE ABRASION TESTER101
 GEER TYPE AGING OVEN102
2WILLIAM TYPE PLASTOMETER105
 AUTOMATIC WILLIAM TYPE PLASTOMETER105 AUTO
 SCHOPPER TYPE SAMPLE CUTTER115
3OLSEN TYPE STIFFNESS TESTER FOR HEAVY LOAD118
 DIGITAL OLSEN TYPE STIFFNESS TESTER FOR HEAVY LOAD118 D
 DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER119
 DE MATTIA FLEX-CRACKING AND CRACK GROWTH
TESTER WITH LOW TEMP. OVEN		119 L
4DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER
WITH LOW TEMP. OVEN （WITH A PICTURE BREAK DETECTION FUNCTION）		119- LVR
5MELT FLOW INDEX TESTER120-FWP
 FULLY AUTOMATIC MELT FLOW INDEX TESTER120 LABOT-MI
 AUTOMATIC MELT FLOW INDEX TESTER120 SAS-2000
6BRITTLENESS TEMPERATURE TESTER121
 R BRITTLENESS TEMPERATURE TESTER
WITH REFRIGERATING MACHINE）		121
 RA BRITTLENESS TEMPERATURE TESTER
(ROTARY HOLDER TYPE)		121
7FULLY AUTOMATIC BRITTLENESS TEMPERATURE TESTER121 AUTO
 TEST TUBE AGING TESTER122
 SCHOPPER TYPE THICKNESS GAUGE128/129
8AUTOMATIC CAPILLARY RHEOMETER FOR LIGHT LOAD140-SAS-2002
 AUTOMATIC CAPILLARY RHEOMETER FOR HEAVY LOAD140-SAS-2005
9CREEP TESTER FOR LIGHT LOAD145-A
 CREEP TESTER FOR HEAVY LOAD145-B
 MIXED CREEP TESTER（STRESS RELAXATION TESTER）145-C
10RETENTIVITY TESTER145-D
 TR TESTER145-L
 SERVOMOTOR TYPE CREEP TESTER145-SVS
11GEHMAN STIFFNESS TESTER145-G
 FULLY AUTOMATIC HEAT DISTORTION TESTER148-HDA
 HEAT DISTORTION TESTER148-HD-PC
12HIGH TEMPERATURE HEAT DISTORTION TESTER148-HD-500
 STRESS-CRACKING TESTER149
 LAMBOURN ABRASION TESTER150
13DIN ABRASION TESTER151
 DIN ABRASION TESTER WITH OVEN151-OV
14GEL TIME TESTER153
 GEL TIME TESTER（CONTINUOUS RECORD TYPE）153
15MARON MECHANICAL STABILITY TESTER156
 AUTOMATIC MARON MECHANICAL STABILITY TESTER156-AUTO
 FLOOR MATERIAL FATIGUE AND ABRASION TESTER BY CASTER159
16SLIP TESTER162
 SLIP TESTER(HORIZONTAL METHOD)162-FS
 5 HANGINGS SLIP TESTER162-S5
17O-Y PULL SLIP TESTER162-OY
 CLASH-BERG TORSION FLEXIBILITY TESTER170
 AUTOMATIC CLASH-BERG TORSION FLEXIBILITY TESTER170-AUTO
 COMPRESSION SET TESTER171
18FILM IMPACT TESTER181
 FILM IMPACT TESTER WITH LOW TEMP. OVEN181-L
 FALLING BALL IMPACT TESTER183
19BALL TACK TESTER183-BT
 FALLING DART IMPACT TESTER183-S
 MCBURNEY INDENTATION TESTER184-A
 RESIDUAL INDENTATION TESTER184-B
20OZONE AGING TESTER187
 PLASTIC SAMPLE CUTTING MACHINE189-PAL
 AUTOMATIC SAMPLE FORMING MACHINE189-PFA
21NOTCHING MACHINE189-PN
 AUTOMATIC NOTCHING MACHINE189-PNA/PNCA
 TEST MIXING ROLL191-TM/WM
22ELECTRIC HEATING SYSTEM TEST PRESS196
 LUPKE TYPE REBOUND RESILIENCE TESTER200
23YSS HEAT SEALER212
 JIS HEAT SEALER213
 OXYGEN INDEX FLAMMABILITY TESTER214
24ELECTRIC HEATING SYSTEM MINI TEST PRESS219
 DART IMPACT TESTER220
 PLASTIC FLAMMABILITY TESTER252-UL-94
25UNIVERSAL IMPACT TESTER258
 DIGITAL IMPACT TESTER258-D
 IMPACT TESTER WITH LOW TEMP. OVEN258-L
26FULLY AUTOMATIC IMPACT TESTER258-ZA
 FOAM RUBBER REPEATED COMPRESSION TESTER260
27ROSS FLEXING TESTER270
 ROSS FLEXING TESTER WITH LOW TEMP. OVEN270-LFR
28HEAT SEAL TESTER276
 PLASTIC SLIDING ABRASION TESTER283
 WILLIAM TYPE ABRASION TESTER275
59DU PONT TYPE FALLING IMPACT TESTER517
 DU PONT TYPE FALLING IMPACT TESTER WITH LOW TEMP. OVEN517-L
66ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER553-M
 PENCIL SCRATCH HARDNESS TESTER553
67FULLY AUTOMATIC PENCIL SCRATCH HARDNESS TESTER553-AUTO
 PENCIL SCRATCH HARDNESS TESTER (LOADCELL TYPE)553-F

===========================================================================================

YASUDA SEIKI
Material : Electric Wire Cord Testing Machine
PageNama Alat TestingCode No
1GEER TYPE AGING OVEN102
6BRITTLENESS TEMPERATURE TESTER121
 BRITTLENESS TEMPERATURE TESTER（WITH REFRIGERATING MACHINE）121-R
 BRITTLENESS TEMPERATURE TESTER（ROTARY HOLDER TYPE）121-RA
7AUTO FULLY AUTOMATIC BRITTLENESS TEMPERATURE TESTER121 AUTO
29CABTYRE CABLE IMPACT TESTER124
 CABTYRE CABLE FLEXING TESTER125
 CABTYRE CABLE ABRASION TESTER127
30SPRING ELONGATION TESTER161
 ENAMELED WIRE STIFFNESS TESTER163
 ENAMELED WIRE SOFTENING POINT TESTER173
31VOLT-ENDURANCE AND DESTRUCTION TESTER175
 PARALLEL PLATE PLASTOMETER185
 AUTOMATIC PARALLEL PLATE PLASTOMETER185-AUTO
32VOLT-ENDURANCE AND DESTRUCTION TESTER
(TWISTPAIR METHOD)		204
 LOW-VOLTAGE CABLE ABRASION TESTER FOR AUTOMOBILE208
33MAGNET WIRE ABRASION TESTER(RECIPROCATING TYPE210
 SCRAPE TESTER（ONE DIRECTION TYPE）215
34ELECTRIC WIRE FLAMMABILITY TESTER252-UL-1581
 ELECTRIC RECIPROCATING ABRASION TESTER (PLUG PIN253
 PLUG FLEXING TESTER254
35COMPOUND GRINDER255
 OUTLET PLUG DURABILITY TESTER256
 CABLE BENDING TESTER262
66ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER553-M
 PENCIL SCRATCH HARDNESS TESTER553
67FULLY AUTOMATIC PENCIL SCRATCH HARDNESS TESTER553-AUTO
 PENCIL SCRATCH HARDNESS TESTER (LOADCELL TYPE)553-F

===========================================================================================

YASUDA SEIKI
Material : Pulp and Paper Testing Machine
PageNama Alat TestingCode No
1TABER TYPE ABRASION TESTER101
7SCHOPPER TYPE THICKNESS GAUGE128/129
16SLIP TESTER162
16SLIP TESTER(HORIZONTAL METHOD)162-FS
165 HANGINGS SLIP TESTER162-S5
18FILM IMPACT TESTER181
18FILM IMPACT TESTER WITH LOW TEMP. OVEN181-L
39HANDLE-O-METER226
39MULLEN HIGH-PRESSURE TYPE BURSTING STRENGTH TESTER304-YPH
39MULLEN LOW-PRESSURE TYPE BURSTING STRENGTH TESTER305-YPL
40FPC FLEXING TESTER306
 FPC FLEXING TESTER WITH LOW TEMP. OVEN306-L
41MIT TYPE FOLDING ENDURANCE TESTER307
 MIT TYPE FOLDING ENDURANCE TESTER LOW TEMP. OVEN307-L
 SCHOPPER TYPE FOLDING ENDURANCE TESTER308
42FENCHEL EXPANSION AND CONTRACTION TESTER309
 KLEMM CAPILLARY RISE TESTER310
 GURLEY TYPE STIFFNESS TESTER311
43TABER TYPE STIFFNESS TESTER312
43DIGITAL TABER TYPE STIFFNESS TESTER312-D
43ELMENDORF TYPE TEARING RESISTANCE TESTER315
43DIGITAL ELMENDORF TYPE TEARING RESISTANCE TESTER315-D
44RING CRUSH TESTER316
44WATER VAPOUR PERMEABILITY CUP318
44AUTOMATIC BEKK SMOOTHNESS TESTER321
45GURLEY TYPE DENSOMETER323
 AUTOMATIC GURLEY TYPE DENSOMETER323-AUTO
 CANADIAN STANDARD FREENESS TESTER324
46SCHOPPER-RIEGLER TYPE FREENESS TESTER325
 PULP SCREENING TESTER330
 AUTOMATIC K.B.B. SIZEING TESTER338
47CLARK TYPE STIFFNESS TESTER342
 TAPE ADHESION ROLLER349
 GURLEY TYPE WATER ABSORPTIVENESS TESTER (COBB METHOD)352
48STANDARD SAMPLE CUTTER353
 DOUBLE BLADE SAMPLE CUTTER FOR RING CRUSH TESTER355
 CURL-SIZE TESTER360
49WATER VAPOUR PERMEABILITY CHAMBER367
 INTERNAL BOND TESTER368
 CONTAINER COMPRESSION TESTER371-S
52COLOUR FASTNESS RUBBING TESTER428

===========================================================================================

YASUDA SEIKI
Material : Paint , Pigment , Ink , Color Testing Machine
PageNama Alat TestingCode No
1TABER TYPE ABRASION TESTER101
18FALLING BALL IMPACT TESTER183
44WATER VAPOUR PERMEABILITY CUP318
49WATER VAPOUR PERMEABILITY CHAMBER367
51CROCK METER416
52COLOUR FASTNESS RUBBING TESTER428
56FLOW CUP505
 SPREAD METER506
 AUTOMATIC SPREAD METER506-PCM
57WET FILM THICKNESS GAUGE507
 BAKER TYPE FILM APPLICATOR510
 PAINT FILM BENDING TESTER514
58ERICHSEN CUPPING TESTER516
 ELECTRIC SYSTEM ERICHSEN CUPPING TESTER516-M
59DU PONT TYPE FALLING IMPACT TESTER517
 DU PONT TYPE FALLING IMPACT TESTER WITH LOW TEMP. OVEN517-L
 MERCURY LAMP FADE METER518
60DRAWING TESTER ON PAINT FILM519
 ZAHN VISCOSITY CUP522
 PRINT INK DRYING TESTER524
61GRIND METER527/547
 SUTHERLAND TYPE RUB TESTER528
 DENSITY CUP536
62GARDNER TYPE FALLING SAND ABRASION TESTER541
 AUTOMATIC FILM APPLICATOR542-AB
 AUTOMATIC FILM APPLICATOR (HEATING PLATE TYPE)542-AB-H
63AUTOMATIC FILM APPLICATOR (CERAMIC PLATE TYPE)542-CR
 AUTOMATIC HOOVER MULLER546
64SAG TESTER548-CKG
 FILM APPLICATOR (DOCTOR BLADE)548-YKG
 NO PICK UP TIME TESTER FOR TRAFFIC PAINT549
65CROSS CUT EXFOLIATION TESTER551
 AUTOMATIC CROSS CUT EXFOLIASION TESTER551-AUTO
 GARDNER TYPE WASHABILITY TESTER552
66PENCIL SCRATCH HARDNESS TESTER553
 ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER553-M
 HAND PUSH PENCIL SCRATCH HARDNESS TESTER553-S
67PENCIL SCRATCH HARDNESS TESTER (LOADCELL TESTER)553-F
 FULLY AUTOMATIC PENCIL SCRATCH HARDNESS TESTER553-AUTO
 VOLUME DENSITY METER558
68RCI TYPE DRYING TIME RECORDER567
 BARCOATER579

===========================================================================================

YASUDA SEIKI
Material : Yarn , Dyeing , Textile and Garment Testing Machine
PageNama Alat TestingCode No
1TABER TYPE ABRASION TESTER101
7SCHOPPER TYPE SAMPLE CUTTER128/129
36WATER PROOF TESTER169
39HANDLE-O-METER226
42KLEMM CAPILLARY RISE ESTER310
42GURLEY TYPE STIFNESS TESTER311
45GURLEY TYPE DENSOMETER323
 AUTOMATIC GURLEY TYPE DENSOMETER323-AUTO
47CLARK TYPE STIFNESS TESTER342
49WATER VAPOUR PERMEABILITY CHAMBER367
50WATER VAPOUR PERMEABILITY CUP FOR TEXTILE401
 SPRAY TESTER402
 MULLEN TYPE BURSTING STRENGTH TESTER FOR TEXTILE404
51WATER PENETRATION RESISTENCE TESTER FOR TEXTILE409
 CROCK METER416
52COLOUR FASTNESS RUBBING TESTER428
 OLSEN TYPE STIFFNESS TESTER FOR LIGHT LOAD429
 SCOTT TYPE CREASE FLEX ABRASION TESTER433
53FLAMMABILITY TESTER FOR TEXTILE440
 VERTICAL FLAMMABILITY TESTER FOR TEXTILE440-B
 MVSS FLAMMABILITY TESTER440-S
54ELMENDORF TYPE TEARING RESISTANCE TESTER FOR TEXTILE445
 ICI TYPE PILLING TESTER453
 45°FLAMMABILITY TESTER FOR TEXTILE455
55ICI TYPE MACE SNAG TESTER473
 CANTILEVER TYPE STIFFNESS TESTER476
