Be absolutely sure of the value of the precious metals you buy and sell with a fast, simple nondestructive solution for gold analysis. Quickly distinguish between gold plating and solid gold and determine the accurate karat (K) weight of gold jewelry with the Thermo Scientific™ Niton™ DXL Precious Metal Analyzer. Designed specifically for countertop use in retail environments, the Niton DXL analyzer, with Thermo Scientific™ AuDIT™ gold-plating detection technology, delivers fast, reliable results for gold testing and metal analysis with just the push of a button.
Precious Metal Analyzer - Niton DXL Analyzer Test
Just a few seconds is all it takes to measure the exact precious metal content in jewelry, coins, and other valuable products using the Niton DXL Precious Metal Analyzer.
- Standard analytical range: 22 elements including all precious metals.
- Nondestructive analysis with near instantaneous results.
- Exceptionally fast, easy to use – see results in seconds on a bright, touch-screen color display.
- No harsh chemicals or acids that can burn your fingers, ruin clothing, and damage countertops.
- Easier, faster, more accurate than nitric acid test methods.
- Faster, more comprehensive analysis than fire assay, with comparable accuracy.
- Compact, elegant, ergonomic design for countertop placement in retail environments.
- Measure the content of all gold and precious metals without manually changing the calibration.
- Precisely determine the presence and concentration of other trace alloying elements and dangerous heavy elements, which could impact valuation and future refining needs.
- Built-in CCD camera makes precise sample positioning effortless.
- Optional small‑spot focus allows isolation and testing of small components.
- Click Here : Vanta GX XRF Analyzer Brochure

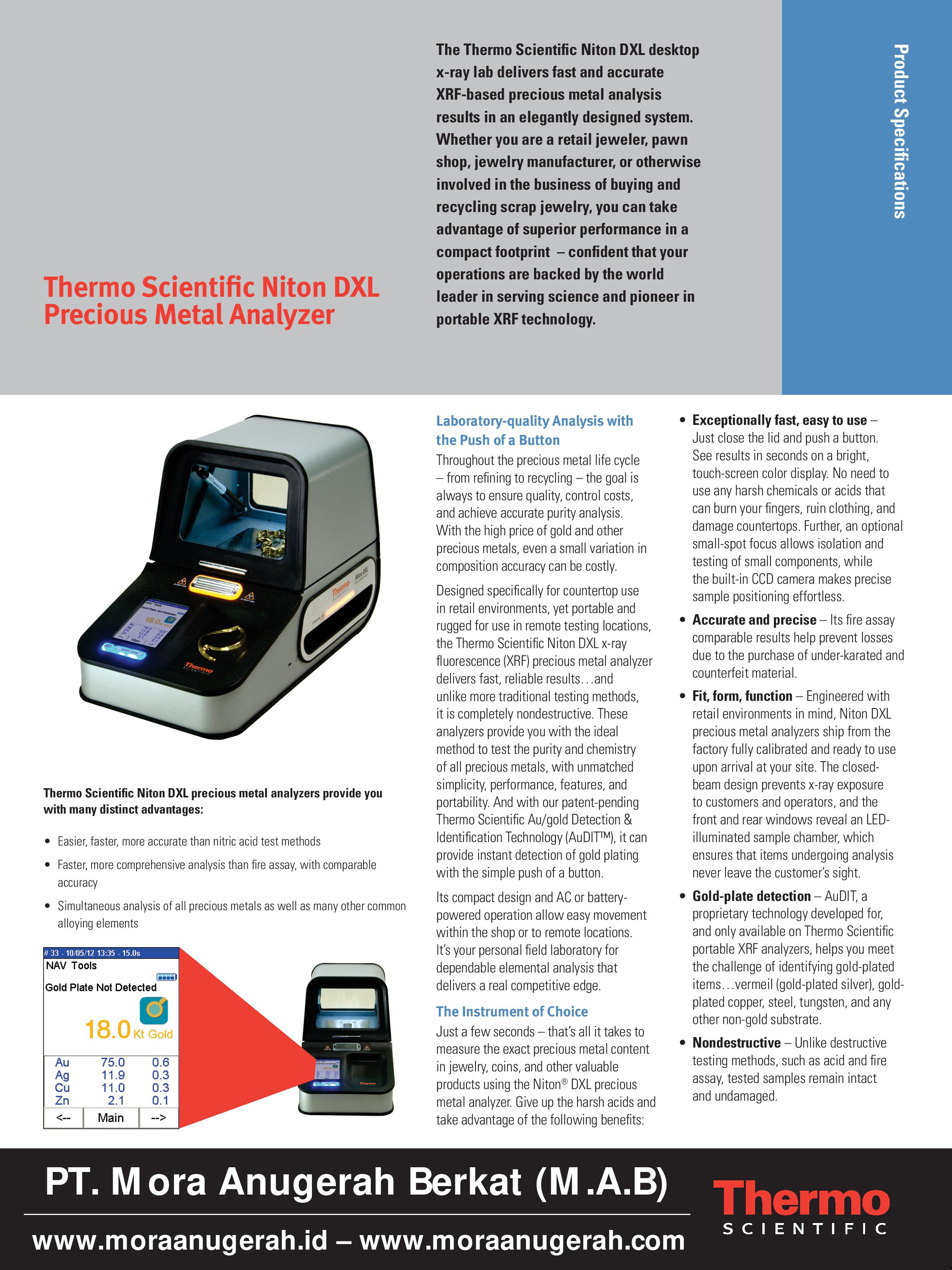

- Click Here : Thermo Scientific DXL XRF Analyzer Brochure
- Click Here : XRF Gold Testing Analyzer Brochure
- Click Here : PT.Mora Anugerah Berkat sudah terdaftar di E-Katalog LKPP
Precious Metal Analyzer - Niton DXL Analyzer Test
| Thermo Scientific Niton DXL Precious Metal Analyzer | |||
| Specifications | |||
| Certifications / Compliance | CE, RoHS | Optional Accessories | 3mm small-spot focus feature ; Additional battery pack ; External battery charger; Locking shielded carrying case |
| Data Entry | Touch-screen keyboard, user-programmable pick lists | Power Consumption | 80μA |
| Data Memory | 64MB internal system memory / 128MB internal user storage | Security Features | Password-protected user security |
| Data Storage | Internal >10,000 readings with spectra | Standard Accessories | One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power) ; 110/220V AC adapter; USB PC connection cable ; Thermo Scientific™ Niton Data Transfer (NDT™) PC software ; 8mm measurement area ; Internal CCD camera for precise sample positioning ; Adhesive Tack for stabilization of samples ; Spare puncture-resistant x-ray windows |
| Data Transfer | USB | System Electronics | 400MHz ARM 11 CPU ; 300MHz dedicated DSP ; 80MHz ASICS DSP for signal processing ; 4096 channel MCA ; |
| Description | Niton DXL Precious Metal Analyzer | Tube Type | Ag anode 45kV maximum, 80µA maximum |
| Dimensions (L x W x H) | 15.6 x 8.1 x 10.4 in. (396 x 206 x 265 mm) | Voltage | 45 kV |
| Display Type | Color touch-screen display | Weight (English) | 17 lb. |
| Height (English) | 10.4 in. | Weight (Metric) | 7.7 kg |
| Height (English) Chamber | 5.2 in. | Width (English) | 8.1 in. |
| Height (Metric) | 265 mm | Width (English) Chamber | 7.2 in. |
| Height (Metric) Chamber | 133 mm | Width (Metric) | 206 mm |
| Item Description | Niton DXL Precious Metal Analyzer | Width (Metric) Chamber | 184 mm |
| Length (English) | 15.6 in. | Applications | Non-destructive method to test the purity and chemistry of precious metals |
| Length (English) Chamber | 6.9 in. | Detector Type | High-performance Si-PIN semiconductor |
| Length (Metric) | 396 mm | Tube Voltage | 45 kV |
| Length (Metric) Chamber | 172 mm | Unit Size | Each |
PT. Mora Anugerah Berkat adalah perusahaan yang sudah berpengalaman dalam menyediakan / mensupply peralatan pengujian NDT Test untuk pengujian seperti Precious Metal Analyzer - Niton DXL Analyzer Test , kami juga menyediakan berbagai brand/merk internasional dari USA, Eropa dan China, produk internasional yang kami supply / tawarkan seperti : Thermo Scientific, Olympus Vanta dan lain - lain ; Kami juga menyediakan Jasa Perbaikan (SERVICE), Jasa Perawatan (Maintenace) dan support untuk KALIBRASI / AKSESSORIES SPAREPART jangan ragu untuk menghubungi kami marketing dan sales kami siap membantu menjawab segala kebutuhan anda.
