Tape Retentivity Tester
No.145-D Retentivity Tester adalah alat uji laboratorium yang digunakan untuk mengukur daya tahan rekat (retentivity/holding power) dari pita perekat (adhesive tape) dan lembaran perekat. Alat ini diproduksi oleh Yasuda Seiki Seisakusho dan mengacu pada standar JIS Z0237
Fungsi Alat ini mengevaluasi kemampuan perekat menahan beban dalam posisi vertikal. Sampel perekat ditempelkan pada pelat uji, kemudian diberi beban tertentu. Pengujian mengukur: Waktu hingga sampel terlepas dari pelat. Jarak pergeseran (slippage) sebelum terlepas.
Tape Retentivity Tester
No.145-D Tape Retentivity Tester
Standard Method : JIS-Z0237
This tester is to evaluate the retentivity of adhesive tape and sheet.
By attaching one end of the test specimen to the testing plate for 25 mm squares and applying load to the other end of the test specimen which is vertically hung down, the tester will measure the distance it got out of alignment or the time it required to fall off from the testing plate.
Berikut adalah link / tautan produk catalog yang kami miliki seperti dibawah ini :

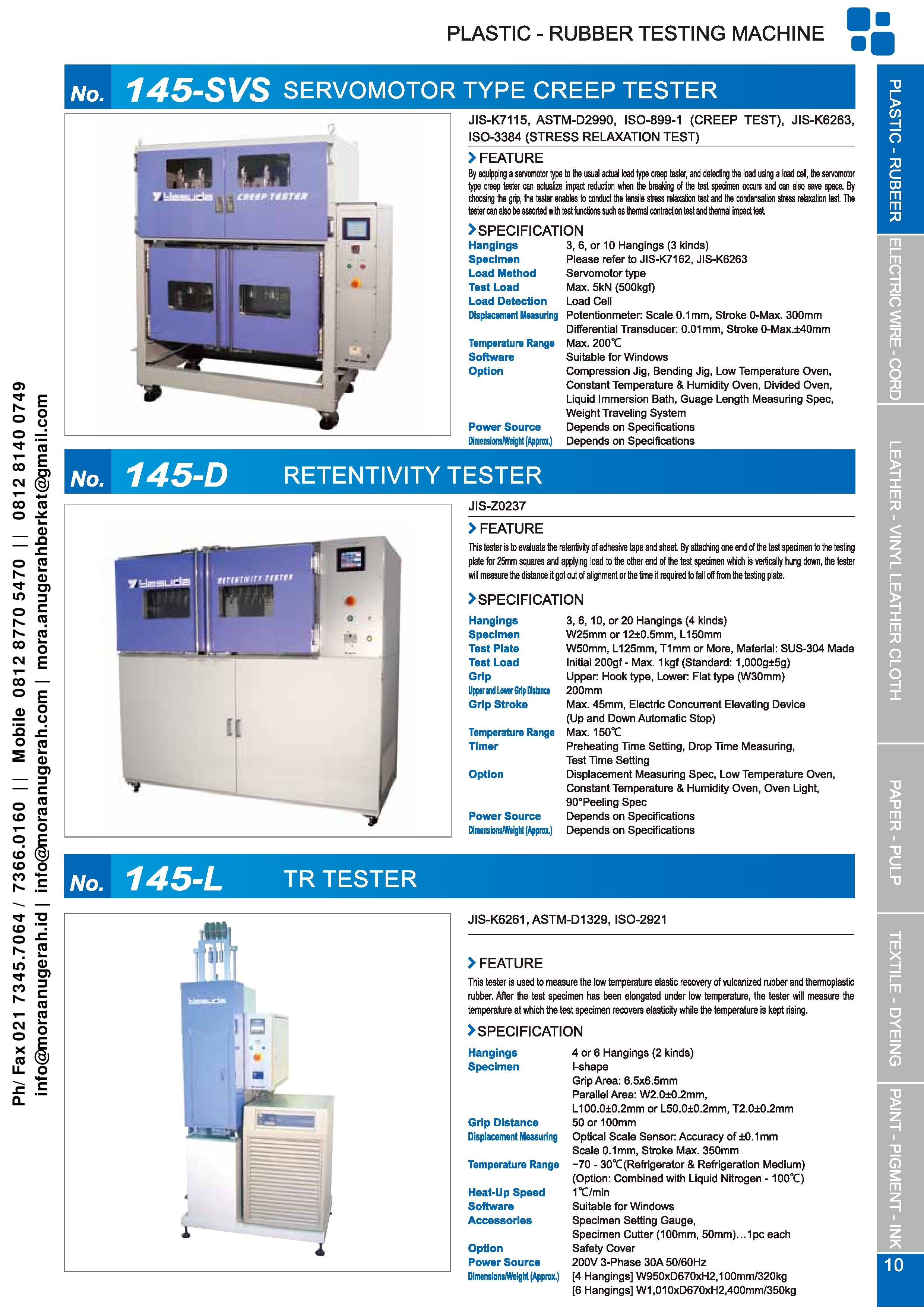

Click Here : Yasuda Seiki No.145-D Retentivity Tester Brochure
Click Here : Yasuda Seiki : Plastic, Rubber, Tape & Polymer Catalog
Click Here : Yasuda Seiki : Electric Wire and Cable Catalog
Click Here : Yasuda Seiki : Leather, Vinyl Leather Cloth Catalog
Click Here : Cell Instrument : Plastic, Rubber, Tape & Polymer Catalog
Click Here : Testex Instrument Fabric,Garment & Textile Catalog
Click Here : PT. Mora Anugerah Berkat sudah terdaftar di E-Katalog LKPP
Tape Retentivity Tester
| No.145-D RETENTIVITY TESTER | |
| Specification : | |
| Hangings | 3, 6, 10 or 20 Hangings (4 kinds) |
| Specimen | W25 mm or 12 ± 0.5 mm, L150 mm |
| Test Plate | W50 mm, L125 mm, T1.1 mm or More, Material: SUS304 Made |
| Weight Load | Initial 200 gf to Max. 1 kgf (Standard 1,000 g ± 5 g) |
| Chuck | Upper: Hook type ; Lower: Flat type (W30 mm) |
| Upper and Lower Chuck Distance | 200 mm |
| Chuck Stroke | Max. 45 mm, Electric Concurrent Elevating Device (Up and Down Automatic Stop) |
| Temperature Range | Max. 150 °C |
| Timer | Preheating Time Setting, Drop Time Measuring, Test Time Setting |
| Option | Displacement Measurement Spec, Low Temperature Oven, Constant Temperature & Humidity Oven, Oven Light, 90° Peeling Spec |
| Power Source | Differ by Specifications. |
| Dimensions / Weight (Approx.) | Differ by Specifications. |
Prinsip Pengujian Sampel pita perekat dipasang pada pelat stainless steel. Sampel ditekan menggunakan roller sesuai prosedur standar. Pelat dipasang secara vertikal. Beban standar digantung pada ujung sampel. Sistem mencatat waktu jatuh atau jarak geser sampel.
Aplikasi Digunakan dalam industri : Tape dan label perekat Kemasan (packaging) Plastik dan polimer Otomotif Elektronik Material perekat industri lainnya
