Adventurer™ Analytical Intuitive Balances Designed for a Variety of Needs
Overview
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
The Most Complete Balance in its Class Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in its class
OHAUS AX124/E Adventurer Analytical
- Applications -> Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold
- Display -> 4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
- Operation -> AC adapter (included)
- Communication -> RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
- Construction -> Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover
- Design Features -> Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages
OHAUS AX124/E Adventurer Analytical
Weighing Performance
- Delivers stable and reliable weighing results for routine weighing tasks Stabilization Time
- Adventurer’s fast stabilization time improves productivity in the laboratory Calibration
- External Calibration — Traditional calibration in which the operator manually calibrates the balance with their choice of calibration weight value to ensure accuracy available on every model.
- AutoCal™ — Select models feature OHAUS’ automatic internal calibration system that performs routine maintenance by calibrating the balance daily.
- Color Touchscreen Offers Easy and Fast Operation of Adventurer’s Applications
- Operate and access Adventurer’s nine application modes and abundant features that eliminate the need to do several manual calculations through the modern color touchscreen
- Operators can wear laboratory gloves while utilizing the touchscreen, eliminating the inconvenience and hazards associated with constantly putting on and removing gloves
- In addition to the touchscreen, Adventurer also has six mechanical keys that provide tactile feedback and allow the operator to perform repetitive operations such as tare, zero, calibration, and print
- Click Here : OHAUS ADVENTURER Analytical and Precision Balances Brochure
- Click Here : SARTORIUS General Brochure
- Click Here : PT.Mora Anugerah Berkat sudah terdaftar di E-Katalog LKPP
Dual USB Ports
- A front USB host port is easily accessible and makes it simple to load data from the balance on to a flash drive without having to reach around to the back or move the balance
- A second USB device is located at the rear of the balance that can be used to connect the balance to a PC
The connectivity options help meet traceability requirements in traditional installations - Real Time Clock with GLP/GMP Data A real-time clock function keeps accurate time even during power loss and the GLP data capability has the ability to record Sample name, Project names and Balance ID’s to help meet traceability and compliance requirements
Balance Profiles
The cloning feature allows you to save user and application settings to a USB flash drive which can be easily used to configure additional Adventurer balances Below Minimum Sample Weight Indication
When using the minimum weight feature, the display clearly indicates that your current sample weight is below your

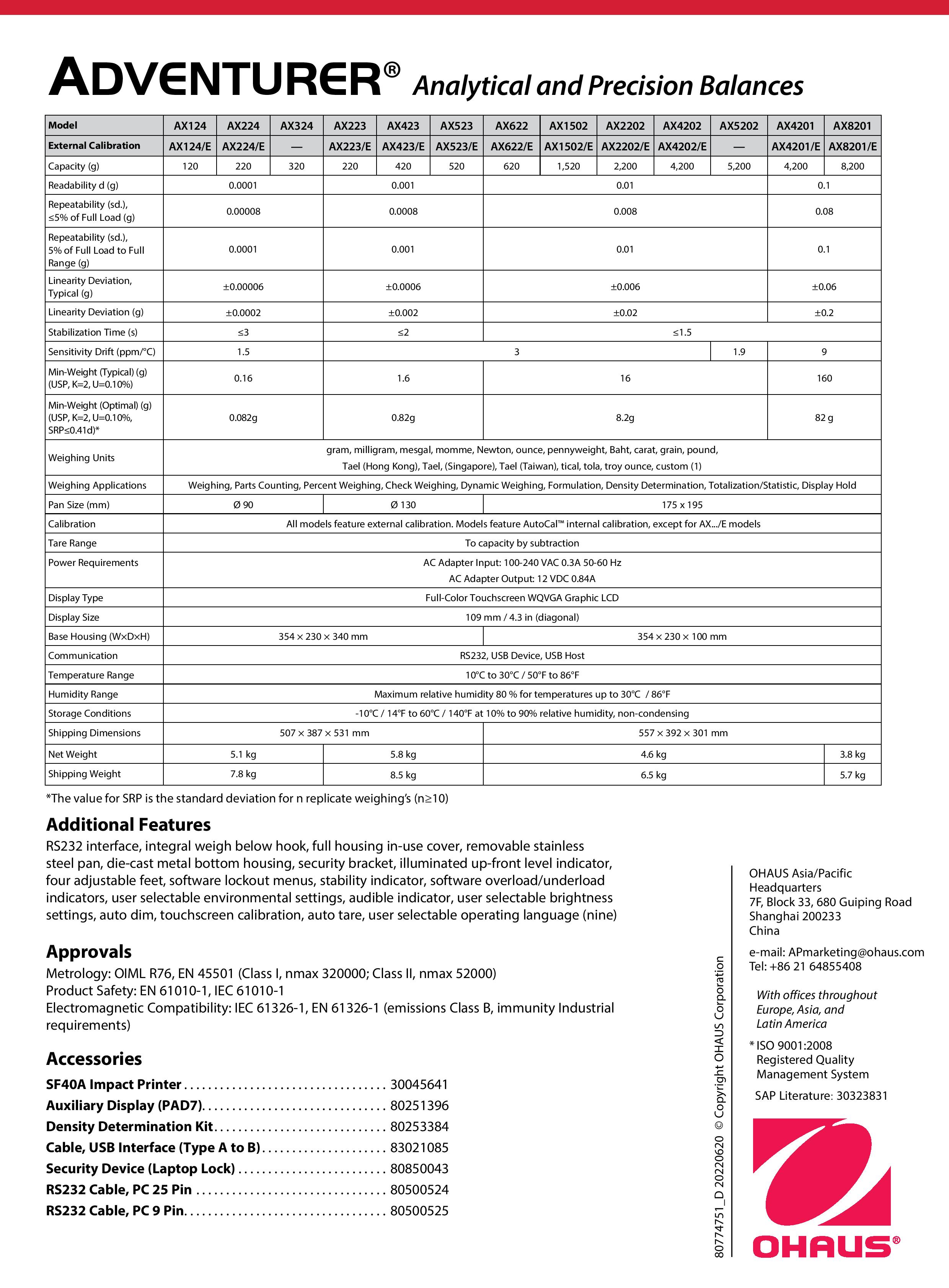

| Model | AX124 | AX224 | AX324 | AX223 |
| External Calibration | AX124/E | AX224/E | — | AX223/E |
| Certified Models | — | AX224N | — | AX223N/E |
| Capacity (g) | 120 | 220 | 320 | 220 |
| Readability d (g) | 1 | 1 | 1 | 1 |
| Verification Interval* e (g) | — | 1 | — | 0.01 |
| Class* | — | I | — | II |
| Repeatability std (g) | ±0.0001 | ±0.0001 | ±0.0001 | ±0.001 |
| Linearity (g) | ±0.0002 | ±0.0002 | ±0.0002 | ±0.002 |
| Stabilization Time (sec) | ≤3 | ≤3 | ≤3 | ≤2 |
| Sensitivity Drift (ppm/°C) | 1.5 | 1.5 | 1.5 | 3 |
| Weighing Units | gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound (only for 0.1g and 0.01g models), Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1) | |||
| Weighing Units, Certified Models | — | ct, grain, g, mg, oz, ozt, dwt | — | — |
| Weighing Applications | Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold | |||
| Pan Size | Ø 3.5 in / 90 mm | Ø 3.5 in / 90 mm | Ø 3.5 in / 90 mm | Ø 5.1 in / 130 mm |
| Calibration | All models feature external calibration. Models feature AutoCal™ internal calibration, except for AX.../E models | |||
| Tare Range | To capacity by subtraction | |||
| Power Requirements | AC Adapter Input : 100-240 VAC 0.3A 50-60 Hz AC Adapter Output : 12 VDC 0.84A | |||
| Display Type | Full-Color Touchscreen WQVGA Graphic LCD | |||
| Display Size | 4.3 in / 109 mm (diagonal) | |||
| Base Housing (W×H×D) | 13.93 x 13.39 x 9.05 in / 354 × 340 × 230 mm | |||
| Communication | RS232, USB Device, USB Host | |||
| Temperature Range | 50°F to 86°F / 10°C to 30°C | |||
| Humidity Range | Maximum relative humidity 80 % for temperatures up to 86°F/30°C | |||
| Storage Conditions | 14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing | |||
| Shipping Dimensions | 20.0 × 15.4 × 20.9 in / 507 × 387 × 531 mm | 20.0 × 15.4 × 20.9 in / 507 × 387 × 531 mm | ||
| Net Weight | 11.3 lb / 5.1 kg | 11.3 lb / 5.1 kg | 11.3 lb / 5.1 kg | 12.8 lb / 5.8 kg |
| Shipping Weight | 17.2 lb / 7.8 kg | 17.2 lb / 7.8 kg | 17.2 lb / 7.8 kg | 18.8 lb / 8.5 kg |
OHAUS AX124/E Adventurer Analytical
| Model | AX423 | AX523 | — | AX622 |
| External Calibration | AX423/E | AX523/E | AX422/E | — |
| Certified Models | AX423N AX423N/E | AX523N/E | — | — |
| Capacity (g) | 420 | 520 | 420 | 620 |
| Readability d (g) | 1 | 1 | 0.01 | 0.01 |
| Verification Interval* e (g) | 0.01 | 0.01 | 0.1 | 0.1 |
| Class* | II | II | II | II |
| Repeatability std (g) | ±0.001 | ±0.001 | ±0.01 | ±0.01 |
| Linearity (g) | ±0.002 | ±0.002 | ±0.02 | ±0.02 |
| Stabilization Time (sec) | ≤2 | ≤2 | ≤1.5 | ≤1.5 |
| Sensitivity Drift (ppm/°C) | 3 | 3 | 3 | 3 |
| Weighing Units | gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound (only for 0.1g and 0.01g models), Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1) | |||
| Weighing Units, Certified Models | ct, grain, g, mg, oz, ozt, dwt | ct, grain, g, oz, ozt, dwt, lb, kg | ||
| Weighing Applications | Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold | |||
| Pan Size | Ø 5.1 in / 130 mm | 6.9 x 7.7 in / 175 x 195 mm | ||
| Calibration | All models feature external calibration. Models feature AutoCal™ internal calibration, except for AX.../E models | |||
| Tare Range | To capacity by subtraction | |||
| Power Requirements | AC Adapter Input : 100-240 VAC 0.3A 50-60 Hz AC Adapter Output : 12 VDC 0.84A | |||
| Display Type | Full-Color Touchscreen WQVGA Graphic LCD | |||
| Display Size | 4.3 in / 109 mm (diagonal) | |||
| Base Housing (W×H×D) | 13.93 x 13.39 x 9.05 in / 354 × 340 × 230 mm | 13.93 × 3.94 × 9.05 in / 354 × 100 × 230 mm | ||
| Communication | RS232, USB Device, USB Host | |||
| Temperature Range | 50°F to 86°F / 10°C to 30°C | |||
| Humidity Range | Maximum relative humidity 80 % for temperatures up to 86°F/30°C | |||
| Storage Conditions | 14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing | |||
| Shipping Dimensions | 20.0 × 15.4 × 20.9 in / 507 × 387 × 531 mm | 22.0 × 15.5 × 11.9 in / 557 × 392 × 301 mm | ||
| Net Weight | 12.8 lb / 5.8 kg | 12.8 lb / 5.8 kg | 10.2 lb / 4.6 kg | 10.2 lb / 4.6 kg |
| Shipping Weight | 18.8 lb / 8.5 kg | 18.8 lb / 8.5 kg | 14.4 lb / 6.5 kg | 14.4 lb / 6.5 kg |
